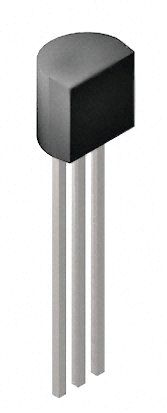

Fagor Electronica, FS0103MA, Thyristor, 600V 0.8A, 200μA 3-Pin, TO-92 [FS0103MA]; 165-5044
0₫
Mã kho: 1655044
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.8A |
| Thyristor Type | SCR |
| Package Type | TO-92 |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 7 A @ 50 Hz, 8 A @ 60 Hz |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 200µA |
| Maximum Gate Trigger Voltage | 0.8V |
| Maximum Holding Current | 5mA |
| Pin Count | 3 |
| Length | 4.8mm |
| Width | 3.86mm |
| Height | 4.8mm |
| Dimensions | 4.8 x 3.86 x 4.8mm |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.95V |
| Off-State Voltage | 600V |
| Repetitive Peak Off-State Current | 100µA |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Minimum Operating Temperature | -40 °C |
