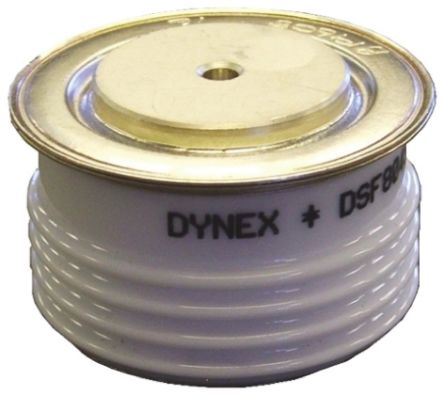

Dynex, DCR960G18, Thyristor, 1800V 960A, 300mA 3-Pin, Type G [DCR960G18]; 760-9294
by Dynex
0₫
Mã kho: 7609294
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Rated Average On-State Current | 960A |
Thyristor Type | SCR |
Package Type | Type G |
Repetitive Peak Reverse Voltage | 1800V |
Surge Current Rating | 14000A |
Mounting Type | Stud |
Maximum Gate Trigger Current | 300mA |
Maximum Gate Trigger Voltage | 3V |
Maximum Holding Current | 200mA |
Pin Count | 3 |
Height | 26.5mm |
Dimensions | 58 (Dia.) x 26.5mm |
Maximum Operating Temperature | +125 °C |
Peak On-State Voltage | 1.45V |
Repetitive Peak Forward Blocking Voltage | 1800V |
Repetitive Peak Off-State Current | 60mA |
