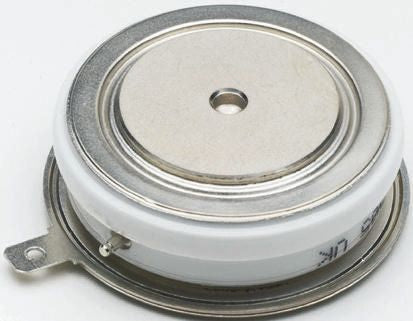

Dynex, DCR860D18, Thyristor, 1800V 860A, 300mA 3-Pin, Type G [DCR860D18]; 760-9285
by Dynex
0₫
Mã kho: 7609285
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 860A |
| Thyristor Type | SCR |
| Package Type | Type G |
| Repetitive Peak Reverse Voltage | 1800V |
| Surge Current Rating | 11500A |
| Mounting Type | Stud |
| Maximum Gate Trigger Current | 300mA |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Holding Current | 200mA |
| Pin Count | 3 |
| Height | 14.5mm |
| Dimensions | 47 (Dia.) x 14.5mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 50mA |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Forward Blocking Voltage | 1800V |
