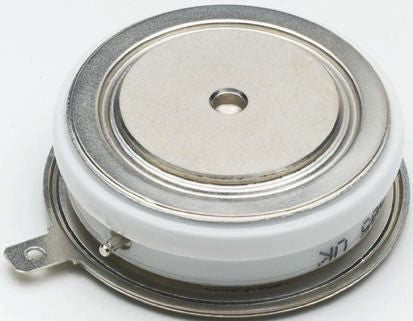

Dynex, DCR780E14, Thyristor, 1400V 780A, 300mA 3-Pin, Type G [DCR780E14]; 760-9272
by Dynex
0₫
Mã kho: 7609272
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 780A |
| Thyristor Type | SCR |
| Package Type | Type G |
| Repetitive Peak Reverse Voltage | 1400V |
| Surge Current Rating | 9100A |
| Mounting Type | Stud |
| Maximum Gate Trigger Current | 300mA |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Holding Current | 200mA |
| Pin Count | 3 |
| Height | 14.5mm |
| Dimensions | 42 (Dia.) x 14.5mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Forward Blocking Voltage | 1400V |
| Repetitive Peak Off-State Current | 30mA |
| Peak On-State Voltage | 1.75V |
