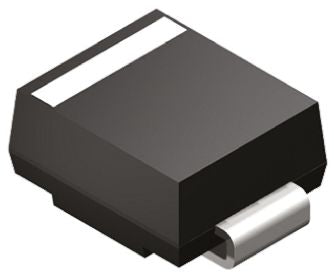

Bourns TISP4040H1BJR-S Thyristor 40V, 1.8A, 2-Pin SMBJ [TISP4040H1BJR-S]; 773-4643
by Bourns
0₫
Mã kho: 7734643
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Breakover Voltage | 40V |
| Peak On-State Voltage | ±3V |
| Maximum Holding Current | 50mA |
| Repetitive Peak Forward Blocking Voltage | ±25V |
| Repetitive Peak On-State Current | 1.8A |
| Repetitive Peak Off-State Current | ±5µA |
| Mounting Type | Surface Mount |
| Package Type | SMBJ |
| Pin Count | 2 |
| Dimensions | 4.57 x 3.94 x 2.237mm |
| Length | 4.57mm |
| Width | 3.94mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 2.237mm |
