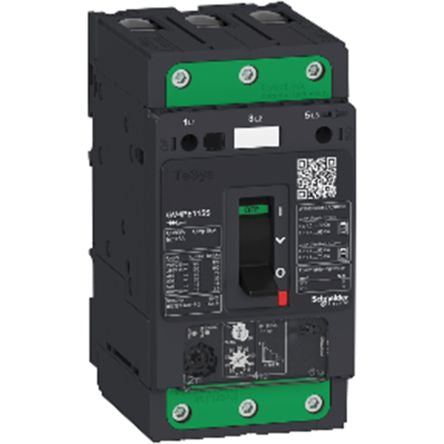

Schneider Electric 7A 3 Pole Thermal Magnetic Circuit Breaker, 690V ac GV4PE [GV4PE07S]; 175-1526
0₫
Mã kho: 1751526
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 7A |
| Range | TeSys |
| Number of Poles | 3 |
| Voltage Rating | 690V ac |
| Width | 116mm |
| Series | GV4PE |
| Overall Length | 81mm |
| Breaking Capacity at Maximum Voltage Rating | 10 kA @ 660 → 690 V ac |
| Rated AC Voltage | 690V |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Thermal-Magnetic |
| Overall Depth | 155mm |
| Overall Dimensions | 81 x 116 x 155mm |
