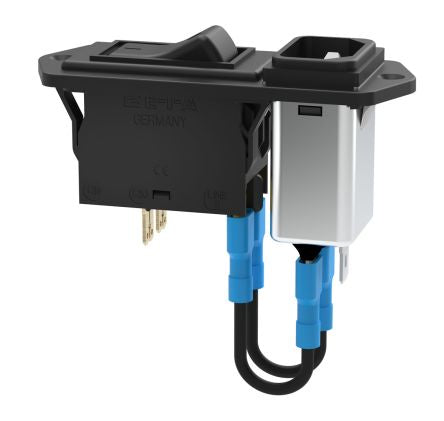

ETA 15A 2 Pole Thermal Magnetic Circuit Breaker, 50 V dc, 240 V ac 3120 [3120-F521-P7T1-W01D-15A-A04011511M]; 175-0387
by ETA
0₫
Mã kho: 1750387
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 15A |
| Number of Poles | 2 |
| Voltage Rating | 50 V dc, 240 V ac |
| Width | 25mm |
| Series | 3120 |
| Rated AC Voltage | 240V |
| Terminal Contact Type | Screw |
| Overall Dimensions | 48 x 25 x 42mm |
| Overall Length | 48mm |
| Reset Actuator Type | Button |
| Breaking Capacity at Maximum Voltage Rating | 1000 A @ 50 V dc, 5000 A @ 250 V ac |
| Tripping Mechanism | Thermal |
| Overall Depth | 42mm |
| Mounting Hole Size | 44.5 x 22mm |
| Mounting Hole Length | 44.5mm |
| Mounting Hole Width | 22mm |
