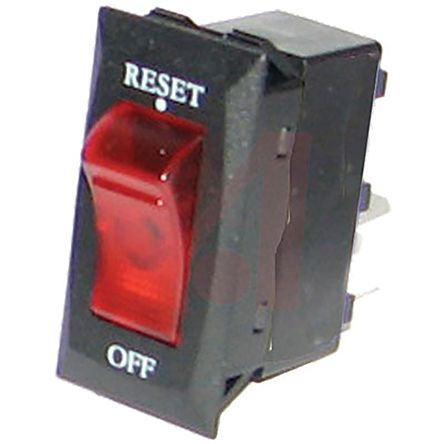

Carling Technologies 15A Thermal Magnetic Circuit Breaker, 32 V dc, 250 V ac C1005B [C1005B-3B151BR3]; 881-4927
0₫
Mã kho: 8814927
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Current Rating | 15A |
Series | C1005B |
Overall Depth | 23.4mm |
Breaking Capacity at Maximum Voltage Rating | 1000 A |
Overall Length | 28mm |
Mounting Hole Width | 28.6mm |
Application | Audio Visual Equipment, Commercial Applications, Generators, Household Appliances, Marine Applications, Medical Equipment, Power Strips, Power Supplies, Telecommunications, Transportation |
Tripping Mechanism | Thermal |
Mounting Style | Panel Mount |
Rated AC Voltage | 250V |
Rated DC Voltage | 32V |
Reset Actuator Type | Rocker |
Overall Dimensions | 28 x 13.5 x 23.4mm |
Mounting Hole Length | 14mm |
Mounting Hole Size | 14 x 28.6mm |
Terminal Contact Type | Tab |
Break Time | Time Delayed |
Special Features | Aesthetically pleasing Curved Rocker & Angular Bezel, Compact Space-saving Envelope, Standard Reset/Off Legend |
