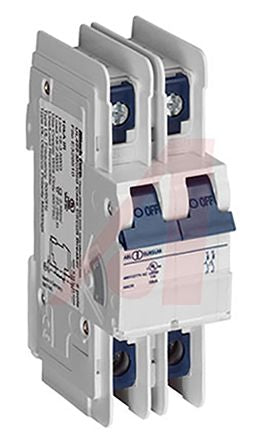

Altech 20A 2 Pole Thermal Magnetic Circuit Breaker, 480Y/277V UL [2D20UL]; 899-3446
by Altech
0₫
Mã kho: 8993446
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 20A |
| Number of Poles | 2 |
| Voltage Rating | 480Y/277V |
| Series | UL |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermal-Magnetic |
| Overall Depth | 74.4mm |
| Overall Dimensions | 105.3 x 35 x 74.4mm |
| Reset Actuator Type | Handle |
| Circuit Breaker Type | MCCB |
| Rated AC Voltage | 480Y/277V |
| Special Features | HACR Type, Line/Load Reversible |
| Break Time | Time Delay |
| Overall Length | 105.3mm |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
| Application | Heaters and Reactive Loads, High Inrush Motors, Power Supplies, Transformers |
| Mounting Style | DIN Rail Mount |
