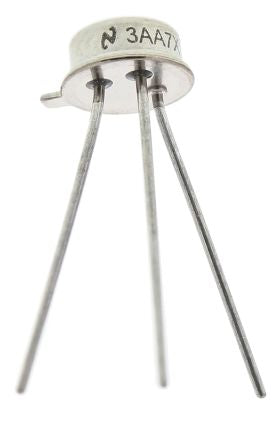

Texas Instruments LM135H, Precision Temperature Sensor -55 → +150 °C ±1°C Analogue, 3-Pin TO-46 [LM135H]; 264-147
0₫
Mã kho: 264147
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Function | Temperature |
| Output Type | Voltage |
| Interface Type | Analogue |
| Accuracy | ±1°C |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Operating Temperature Range | -55 → +150 °C |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Supply Voltage | 2.95 V |
| Maximum Operating Supply Voltage | 2.99 V |
| Package Type | TO-46 |
| Length | 5.44mm |
| Height | 2.67mm |
| Width | 5.44mm |
| Dimensions | 5.44 x 5.44 x 2.67mm |
| Sensor Gain | 10mV/°C |
