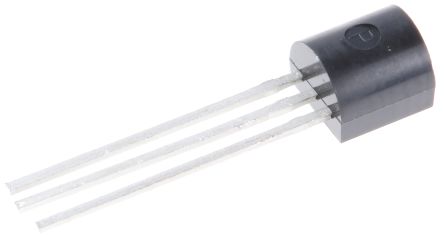

Analog Devices TMP37FT9Z, Temperature Sensor +5 → +100 °C ±1°C Voltage, 3-Pin TO-92 [TMP37FT9Z]; 158-1946
0₫
Mã kho: 1581946
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Function | Temperature |
| Output Type | Emitter Follower |
| Interface Type | Voltage |
| Accuracy | ±1°C |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Minimum Operating Temperature | +5 °C |
| Operating Temperature Range | +5 → +100 °C |
| Maximum Operating Temperature | +100 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Package Type | TO-92 |
| Length | 5.21mm |
| Height | 5.33mm |
| Width | 4.19mm |
| Dimensions | 5.21 x 4.19 x 5.33mm |
| Sensor Gain | 20mV/°C |
