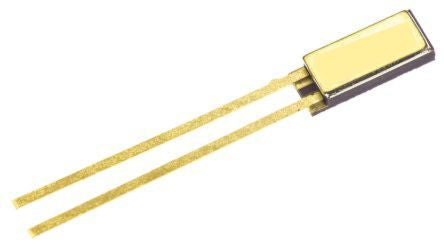

Analog Devices AD590MF, Temperature Transducer -55 → +150 °C ±0.5°C, 2-Pin Flatpack [AD590MF]; 183-1862
0₫
Mã kho: 1831862
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Function | Temperature |
| Output Type | Analogue |
| Accuracy | ±0.5°C |
| Mounting Type | Surface Mount |
| Pin Count | 2 |
| Minimum Operating Temperature | -55 °C |
| Operating Temperature Range | -55 → +150 °C |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Supply Voltage | 4 V |
| Maximum Operating Supply Voltage | 30 V |
| Package Type | Flatpack |
| Length | 6.1mm |
| Series | AD590 |
| Height | 1.27mm |
| Width | 2.36mm |
| Dimensions | 6.1 x 2.36 x 1.27mm |
