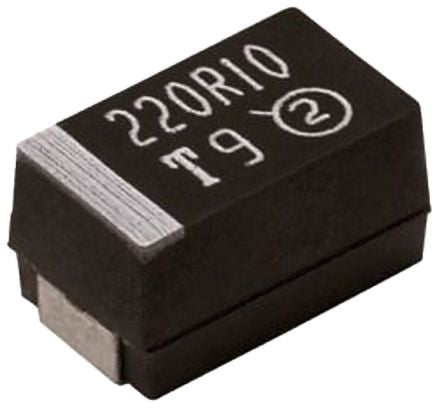

Vishay Tantalum Capacitor 22μF 25V dc MnO2 Solid ±20% Tolerance TR3 Series [TR3D226M025C0300]; 173-1358
by Vishay
0₫
Mã kho: 1731358
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | MnO2 |
Capacitance | 22 µF |
Voltage | 25 V dc |
Mounting Type | Surface Mount |
Package/Case | 7343-31 |
Equivalent Series Resistance | 300mΩ |
Tolerance | ±20% |
Length | 7.3mm |
Depth | 4.3mm |
Height | 2.8mm |
Dimensions | 7.3 x 4.3 x 2.8mm |
Series | TR3 |
Electrolyte Type | Solid |
Maximum Operating Temperature | +125°C |
Tolerance Plus | 0.2 |
Tolerance Minus | -0.2 |
Leakage Current | 5.5 μA |
Terminal Type | Surface Mount |
Dissipation Factor | 0.06 |
Minimum Operating Temperature | -55°C |
