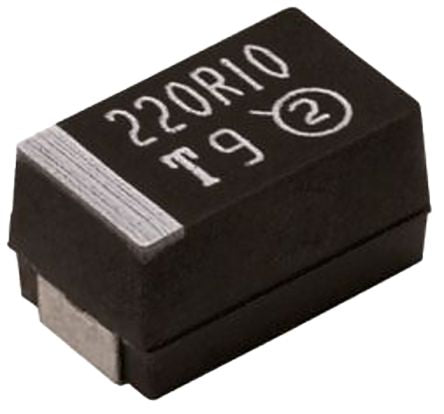

Vishay Tantalum Capacitor 10μF 35V dc MnO2 Solid ±10% Tolerance TR3 Series [TR3D106K035C0400]; 684-5180
by Vishay
0₫
Mã kho: 6845180
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | MnO2 |
| Capacitance | 10 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 7343-31 |
| Equivalent Series Resistance | 400mΩ |
| Tolerance | ±10% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 2.8mm |
| Dimensions | 7.3 x 4.3 x 2.8mm |
| Series | TR3 |
| Electrolyte Type | Solid |
| Minimum Operating Temperature | -55°C |
| Tolerance Plus | 0.1 |
| Maximum Operating Temperature | +125°C |
| Dissipation Factor | 0.06 |
| Leakage Current | 3.5 μA |
| Tolerance Minus | -0.1 |
| Terminal Type | Surface Mount |
