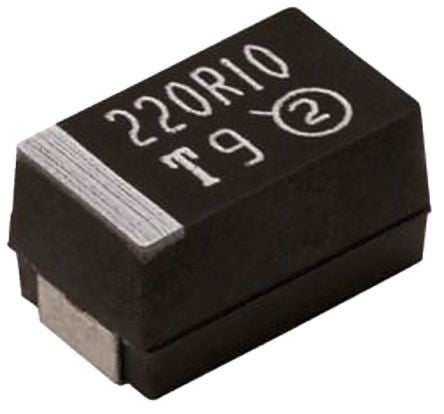

Vishay Tantalum Capacitor 47μF 6.3V dc MnO2 Solid ±10% Tolerance TR3 Series [TR3B476K6R3C0500]; 173-1327
by Vishay
0₫
Mã kho: 1731327
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | MnO2 |
| Capacitance | 47 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 3528-21 |
| Equivalent Series Resistance | 500mΩ |
| Tolerance | ±10% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | TR3 |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Terminal Type | Surface Mount |
| Tolerance Plus | 0.1 |
| Tolerance Minus | -0.1 |
| Dissipation Factor | 0.06 |
| Minimum Operating Temperature | -55°C |
| Leakage Current | 2.8 μA |
