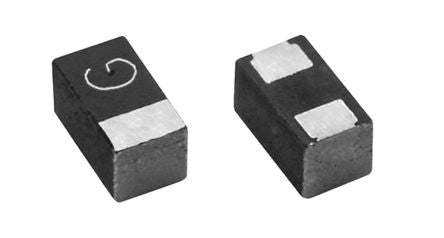

Vishay Tantalum Capacitor 4.7μF 20V dc MnO2 Solid ±20% Tolerance TP8 Series [TP8P475M020C]; 173-3793
by Vishay
0₫
Mã kho: 1733793
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | MnO2 |
| Capacitance | 4.7 µF |
| Voltage | 20 V dc |
| Mounting Type | Surface Mount |
| Package/Case | P |
| Equivalent Series Resistance | 6Ω |
| Lead Pitch | 1.4mm |
| Tolerance | ±20% |
| Length | 2.4mm |
| Depth | 1.45mm |
| Height | 1.2mm |
| Dimensions | 2.4 x 1.45 x 1.2mm |
| Series | TP8 |
| Electrolyte Type | Solid |
| Dielectric Material Family | Tantalum |
| Leakage Current | 0.9 μA |
| Tolerance Minus | -0.2 |
| Dissipation Factor | 0.06 |
| Minimum Operating Temperature | -55°C |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +125°C |
