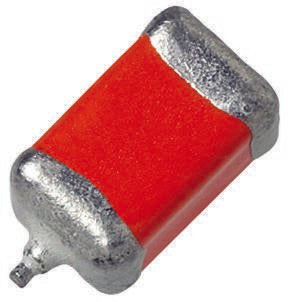

Vishay Tantalum Capacitor 330μF 10V dc MnO2 Solid ±10% Tolerance 595D Series [595D337X9010R2T]; 684-4761
by Vishay
0₫
Mã kho: 6844761
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | MnO2 |
| Capacitance | 330 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Equivalent Series Resistance | 130mΩ |
| Tolerance | ±10% |
| Length | 7.2mm |
| Depth | 6mm |
| Height | 3.5mm |
| Dimensions | 7.2 x 6 x 3.5mm |
| Series | 595D |
| Electrolyte Type | Solid |
| Dissipation Factor | 0.08 |
| Maximum Operating Temperature | +85°C |
| Leakage Current | 33 μA |
| Tolerance Minus | -0.1 |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Tolerance Plus | 0.1 |
