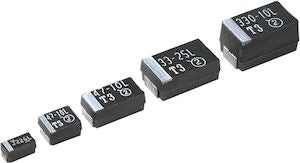

Vishay Tantalum Capacitor 47μF 25V dc Tantalum Solid ±10% Tolerance 293D Series [293D476X9025D2TE3]; 179-7508
by Vishay
0₫
Mã kho: 1797508
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Tantalum |
| Capacitance | 47 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 7343-31 |
| Equivalent Series Resistance | 700mΩ |
| Automotive Standard | AEC-Q200 |
| Tolerance | ±10% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 2.8mm |
| Dimensions | 7.3 x 4.3 x 2.8mm |
| Series | 293D |
| Electrolyte Type | Solid |
| Tolerance Minus | -0.1 |
| Polarised | Polar |
| Dissipation Factor | 0.08 |
| Leakage Current | 500 nA |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Solder |
| Tolerance Plus | 0.1 |
