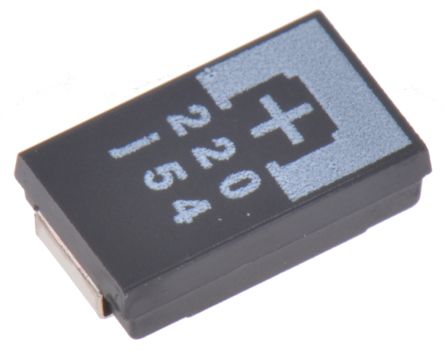

Panasonic Tantalum Capacitor 220μF 6.3V dc Polymer Solid ±20% Tolerance POSCAP TA Series [6TAE220MI]; 172-4592
by Panasonic
0₫
Mã kho: 1724592
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 220 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | D2E |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 1.8mm |
| Dimensions | 7.3 x 4.3 x 1.8mm |
| Series | POSCAP TA |
| Electrolyte Type | Solid |
| Dielectric Material Family | Tantalum |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
| Tolerance Plus | 0.2 |
| Leakage Current | 138.6 μA |
| Tolerance Minus | -0.2 |
| Surge Voltage | 7.245V |
| Dissipation Factor | 0.001 |
