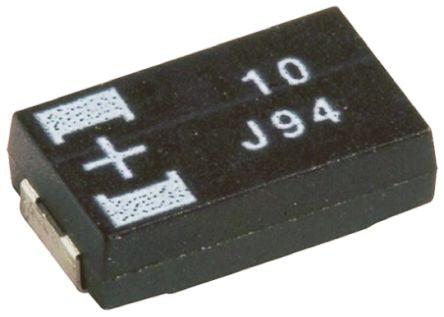

Panasonic Tantalum Capacitor 220μF 10V dc Polymer Solid ±20% Tolerance POSCAP TPB Series [10TPB220ML]; 788-7328
by Panasonic
0₫
Mã kho: 7887328
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 220 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | D3L |
| Equivalent Series Resistance | 40mΩ |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 2.8mm |
| Dimensions | 7.3 x 4.3 x 2.8mm |
| Series | POSCAP TPB |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +105°C |
| Tolerance Minus | -0.2 |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Tolerance Plus | 0.2 |
| Leakage Current | 220 μA |
