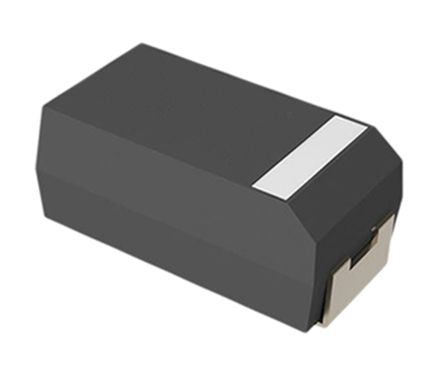

KEMET Tantalum Capacitor 330μF 2.5V dc Electrolytic Solid ±20% Tolerance T591 Series [T591V337M2R5ATE012]; 172-6735
by KEMET
0₫
Mã kho: 1726735
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 330 µF |
| Voltage | 2.5 V dc |
| Mounting Type | Surface Mount |
| Package/Case | V |
| Equivalent Series Resistance | 12mΩ |
| Lead Pitch | 3.8mm |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 1.9mm |
| Dimensions | 7.3 x 4.3 x 1.9mm |
| Series | T591 |
| Electrolyte Type | Solid |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +125°C |
| Leakage Current | 83 μA |
| Tolerance Minus | -0.2 |
| Dissipation Factor | 0.1 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
