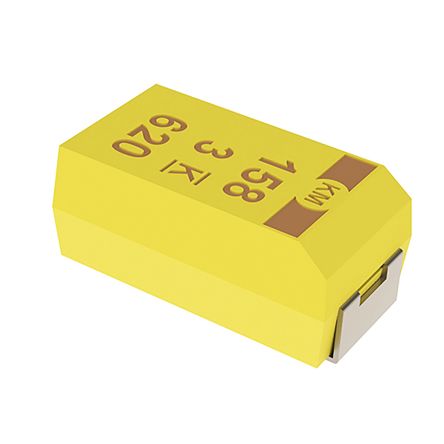

T541 Cap Tantalum Polymer 220uF 20% 16VD [T541X227M016AH6710]; 187-7159
by KEMET
0₫
Mã kho: 1877159
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 220 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 7343-43 |
| Equivalent Series Resistance | 40mΩ |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 4mm |
| Dimensions | 7.3 x 4.3 x 4mm |
| Series | T541_COTS |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Leakage Current | 352 μA |
| Tolerance Minus | -0.2 |
| Dissipation Factor | 0.1 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Tolerance Plus | 0.2 |
| Polarised | Polar |
