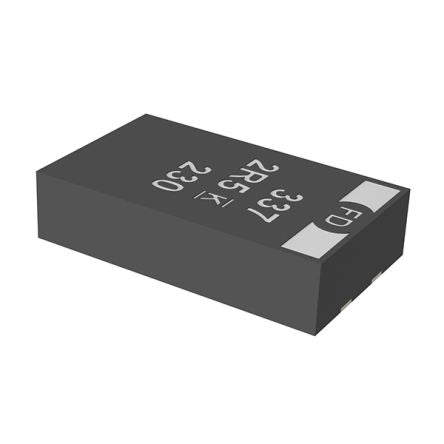

KEMET Tantalum Capacitor 150μF 16V dc Electrolytic Solid ±20% Tolerance T523 Series [T523W157M016APE070]; 173-6010
by KEMET
0₫
Mã kho: 1736010
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 150 µF |
Voltage | 16 V dc |
Mounting Type | Surface Mount |
Package/Case | 7343-15 |
Equivalent Series Resistance | 70mΩ |
Tolerance | ±20% |
Length | 7.3mm |
Depth | 4.3mm |
Height | 1.4mm |
Dimensions | 7.3 x 4.3 x 1.4mm |
Series | T523 |
Electrolyte Type | Solid |
Terminal Type | Solder |
Tolerance Plus | 0.2 |
Dielectric Material Family | Tantalum |
Polarised | Polar |
Leakage Current | 240 μA |
Maximum Operating Temperature | +105°C |
Dissipation Factor | 0.1 |
Minimum Operating Temperature | -55°C |
Tolerance Minus | -0.2 |
