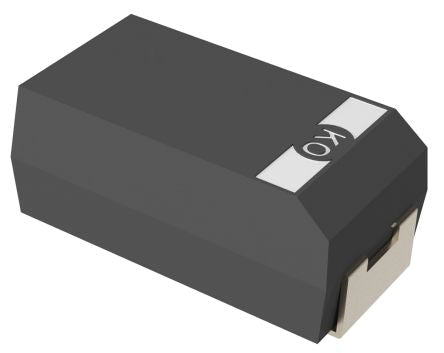

KEMET Electrolytic Capacitor 33μF 25V dc Polymer Solid ±20% Tolerance T521 Series [T521V336M025ATE025]; 144-1730
by KEMET
0₫
Mã kho: 1441730
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 33 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 7343-19 |
| Equivalent Series Resistance | 25mΩ |
| Lead Pitch | 3.6mm |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 1.8mm |
| Dimensions | 7.3 x 4.3 x 1.8mm |
| Series | T521 |
| Electrolyte Type | Solid |
| Dissipation Factor | 0.1 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Surge Voltage | 32.5V |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +105°C |
| Leakage Current | 82.5 μA |
| Polarised | Polar |
| Tolerance Minus | -0.2 |
| Terminal Type | Solder |
