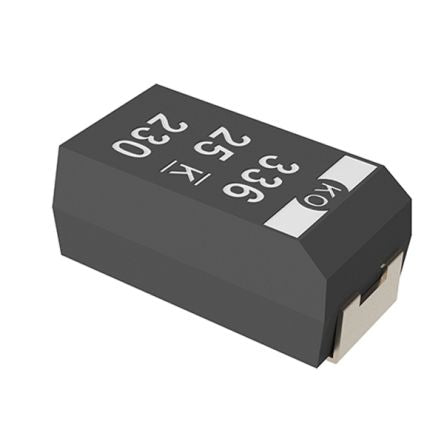

T521 Cap Tantalum Polymer 6.8uF 20% 63VD [T521D685M063ATE075]; 187-7098
by KEMET
0₫
Mã kho: 1877098
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 6.8 µF |
| Voltage | 63 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 7343-31 |
| Equivalent Series Resistance | 75mΩ |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 2.8mm |
| Dimensions | 7.3 x 4.3 x 2.8mm |
| Series | T521 |
| Electrolyte Type | Solid |
| Minimum Operating Temperature | -55°C |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Tantalum |
| Tolerance Minus | -0.2 |
| Polarised | Polar |
| Leakage Current | 42.8 μA |
| Maximum Operating Temperature | +125°C |
| Dissipation Factor | 0.1 |
