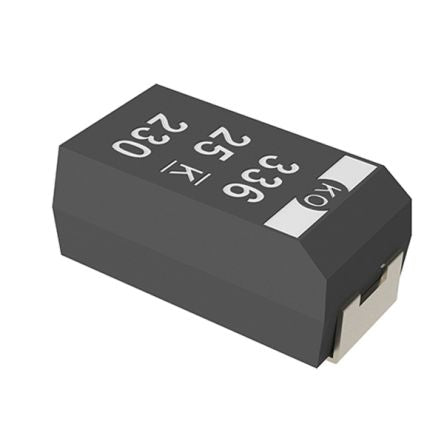

KEMET Tantalum Capacitor 33μF 16V dc Polymer Solid ±20% Tolerance T521 Series [T521B336M016ATE090]; 179-3181
by KEMET
0₫
Mã kho: 1793181
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Polymer |
Capacitance | 33 µF |
Voltage | 16 V dc |
Mounting Type | Surface Mount |
Package/Case | 3528-21 |
Equivalent Series Resistance | 90mΩ |
Lead Pitch | 1.9 (Minimum)mm |
Tolerance | ±20% |
Length | 3.5mm |
Depth | 2.8mm |
Height | 2mm |
Dimensions | 3.5 x 2.8 x 2mm |
Series | T521 |
Electrolyte Type | Solid |
Leakage Current | 52.8 μA |
Maximum Operating Temperature | +105°C |
Tolerance Plus | 0.2 |
Dielectric Material Family | Tantalum |
Minimum Operating Temperature | -55°C |
Dissipation Factor | 0.08 |
Tolerance Minus | -0.2 |
Polarised | Polar |
