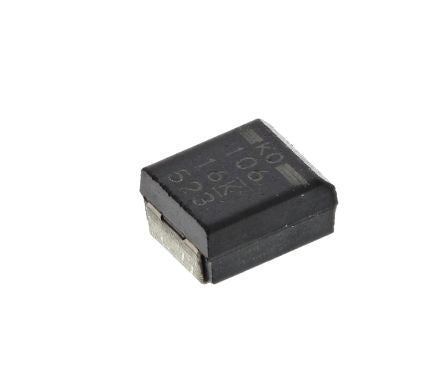

KEMET Tantalum Capacitor 10μF 16V dc Polymer Solid ±20% Tolerance T520 Series [T520B106M016ATE100]; 692-5775
by KEMET
0₫
Mã kho: 6925775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 10 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 3528-21 |
| Equivalent Series Resistance | 100mΩ |
| Tolerance | ±20% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | T520 |
| Electrolyte Type | Solid |
| Minimum Operating Temperature | -55°C |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +105°C |
| Dissipation Factor | 0.08 |
| Leakage Current | 16 μA |
| Tolerance Minus | -0.2 |
