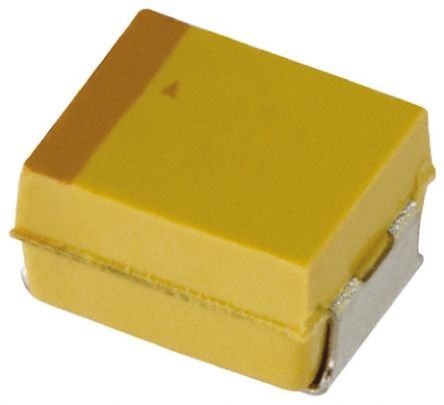

AVX Tantalum Capacitor 150μF 6.3V dc Polymer Solid ±20% Tolerance TCJ Series [TCJW157M006R0070]; 171-0437
by AVX
0₫
Mã kho: 1710437
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 150 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 6032-15 |
| Equivalent Series Resistance | 70mΩ |
| Tolerance | ±20% |
| Length | 6mm |
| Depth | 3.2mm |
| Height | 1.5mm |
| Dimensions | 6 x 3.2 x 1.5mm |
| Series | TCJ |
| Electrolyte Type | Solid |
| Tolerance Plus | 0.2 |
| Terminal Type | Surface Mount |
| Dissipation Factor | 0.06 |
| Tolerance Minus | -0.2 |
| Leakage Current | 90 μA |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
