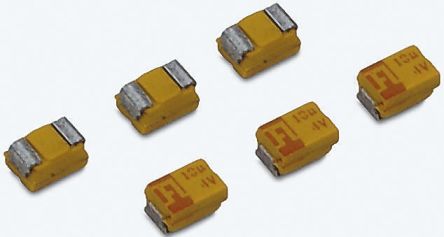

AVX Tantalum Capacitor 470μF 10V dc MnO2 Solid ±20% Tolerance TAJ Series [TAJE477M010R]; 699-3116
by AVX
0₫
Mã kho: 6993116
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | MnO2 |
| Capacitance | 470 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 7343-43 |
| Equivalent Series Resistance | 500mΩ |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 4.1mm |
| Dimensions | 7.3 x 4.3 x 4.1mm |
| Series | TAJ |
| Electrolyte Type | Solid |
| Tolerance Plus | 0.2 |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Surface Mount |
| Tolerance Minus | -0.2 |
| Leakage Current | 47 μA |
| Dissipation Factor | 0.1 |
| Maximum Operating Temperature | +125°C |
