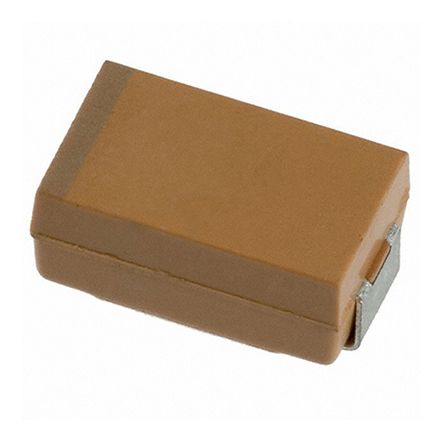

EPCOS Tantalum Capacitor 22μF 25V dc Electrolytic Solid ±20% Tolerance TAJ Series [TAJD226M025RNJ]; 887-3115
by AVX
0₫
Mã kho: 8873115
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 22 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 7343-31 |
| Equivalent Series Resistance | 900mΩ |
| Lead Pitch | 4.4mm |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 2.9mm |
| Dimensions | 7.3 x 4.3 x 2.9mm |
| Series | TAJ |
| Electrolyte Type | Solid |
| Dielectric Material Family | Tantalum |
| Minimum Operating Temperature | -55°C |
| Surge Voltage | 20 V @ ≤+125 °C, 32 V @ ≤+85 °C |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +125°C |
| Dissipation Factor | 0.06 |
| Leakage Current | 5.5 μA |
| Terminal Type | SMT |
| Tolerance Minus | -0.2 |
