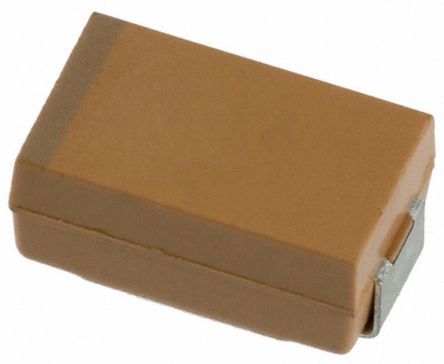

AVX Tantalum Capacitor 15μF 50V dc Tantalum Solid ±10% Tolerance TAJ Series [TAJD156K050RNJ]; 136-0323
by AVX
0₫
Mã kho: 1360323
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Tantalum |
Capacitance | 15 µF |
Voltage | 50 V dc |
Mounting Type | Surface Mount |
Package/Case | 7343-31 |
Equivalent Series Resistance | 600mΩ |
Automotive Standard | AEC-Q200 |
Lead Pitch | 4.4mm |
Tolerance | ±10% |
Length | 7.3mm |
Depth | 4.3mm |
Height | 2.9mm |
Dimensions | 7.3 x 4.3 x 2.9mm |
Series | TAJ |
Electrolyte Type | Solid |
Surge Voltage | 65V |
Tolerance Plus | 0.1 |
Maximum Operating Temperature | +125°C |
Dissipation Factor | 0.06 |
Minimum Operating Temperature | -55°C |
Dielectric Material Family | Tantalum |
Terminal Type | SMT |
Leakage Current | 7.5 μA |
Polarised | Polar |
Tolerance Minus | -0.1 |
