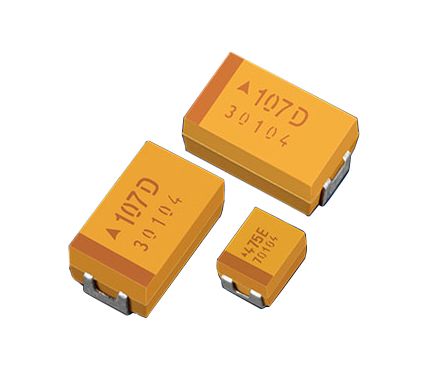

AVX Tantalum Capacitor 10μF 50V dc Electrolytic Solid ±10% Tolerance TAJ Series [TAJD106K050RNJ]; 136-4109
by AVX
0₫
Mã kho: 1364109
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 10 µF |
Voltage | 50 V dc |
Mounting Type | Surface Mount |
Package/Case | 7343-31 |
Equivalent Series Resistance | 800mΩ |
Automotive Standard | AEC-Q200 |
Tolerance | ±10% |
Length | 7.3mm |
Depth | 4.3mm |
Height | 2.9mm |
Dimensions | 7.3 x 4.3 x 2.9mm |
Series | TAJ |
Electrolyte Type | Solid |
Dielectric Material Family | Tantalum |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +125°C |
Surge Voltage | 40 V dc @ ≤ +125°C, 65 V dc @ ≤ +85°C |
Tolerance Plus | 0.1 |
Dissipation Factor | 0.06 |
Leakage Current | 5 μA |
Polarised | Polar |
Terminal Type | SMT |
Tolerance Minus | -0.1 |
