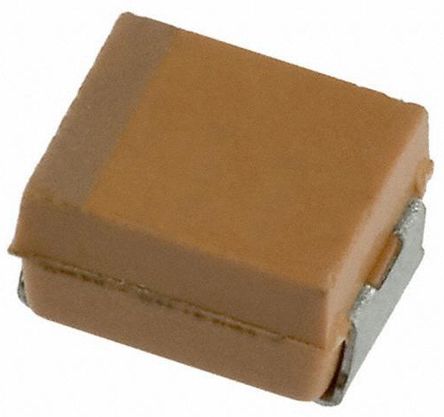

AVX Tantalum Capacitor 220μF 4V dc Electrolytic Solid ±20% Tolerance TAJ Series [TAJB227M004RNJ]; 136-0183
by AVX
0₫
Mã kho: 1360183
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 220 µF |
| Voltage | 4 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 1210 (3225M) |
| Equivalent Series Resistance | 1.1Ω |
| Lead Pitch | 1.4mm |
| Tolerance | ±20% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | TAJ |
| Electrolyte Type | Solid |
| Surge Voltage | 3.4 V dc @ +125 °C, 5.2 V dc @ +85 °C |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 0.12 |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Tantalum |
| Leakage Current | 8.8 μA |
| Polarised | Polar |
| Tolerance Minus | -0.2 |
| Maximum Operating Temperature | +125°C |
| Terminal Type | SMT |
