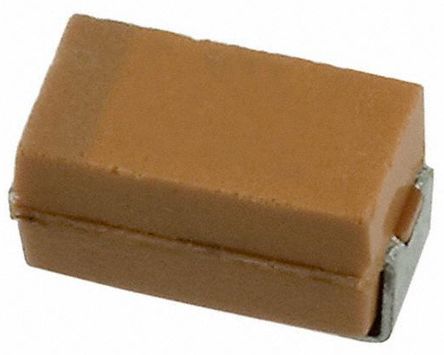

AVX Tantalum Capacitor 4.7μF 25V dc Electrolytic Solid ±10% Tolerance TAJ Series [TAJA475K025RNJ]; 135-4045
by AVX
0₫
Mã kho: 1354045
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 4.7 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 1206 (3216M) |
| Equivalent Series Resistance | 3.1Ω |
| Lead Pitch | 1.1mm |
| Tolerance | ±10% |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 1.6mm |
| Dimensions | 3.2 x 1.6 x 1.6mm |
| Series | TAJ |
| Electrolyte Type | Solid |
| Leakage Current | 1.2 μA |
| Polarised | Polar |
| Tolerance Minus | -0.1 |
| Terminal Type | SMT |
| Dissipation Factor | 0.06 |
| Dielectric Material Family | Tantalum |
| Surge Voltage | 20 V dc @ +125 °C, 32 V dc @ +85 °C |
| Tolerance Plus | 0.1 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
