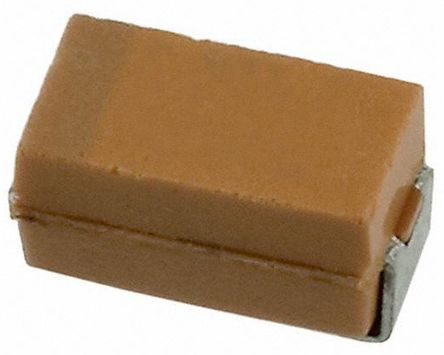

AVX Tantalum Capacitor 1μF 50V dc Electrolytic Solid ±20% Tolerance TAJ Series [TAJA105M050RNJ]; 136-0169
by AVX
0₫
Mã kho: 1360169
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 1 µF |
| Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 1206 (3216M) |
| Equivalent Series Resistance | 6.6Ω |
| Lead Pitch | 1.1mm |
| Tolerance | ±20% |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 1.6mm |
| Dimensions | 3.2 x 1.6 x 1.6mm |
| Series | TAJ |
| Electrolyte Type | Solid |
| Tolerance Minus | -0.2 |
| Terminal Type | SMT |
| Dissipation Factor | 0.04 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Polarised | Polar |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +125°C |
| Leakage Current | 0.5 μA |
| Surge Voltage | 40 V dc @ +125 °C, 65 V dc @ +85 °C |
