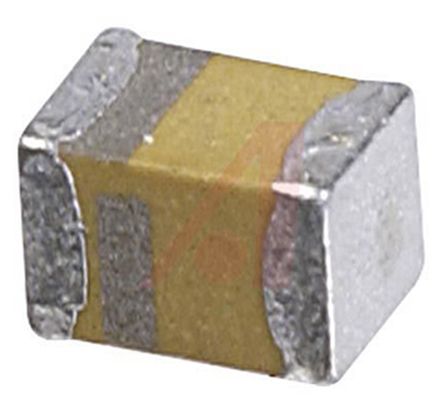

EPCOS Tantalum Capacitor 47μF 3V dc Electrolytic Solid ±10% Tolerance TAC Series [TACR476K003XTA]; 887-2901
by AVX
0₫
Mã kho: 8872901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 47 µF |
| Voltage | 3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 2012-15 |
| Equivalent Series Resistance | 5Ω |
| Lead Pitch | 0.15mm |
| Tolerance | ±10% |
| Length | 2mm |
| Depth | 1.35mm |
| Height | 1.35mm |
| Dimensions | 2 x 1.35 x 1.35mm |
| Series | TAC |
| Electrolyte Type | Solid |
| Surge Voltage | 2.6 V @ ≤+125 °C, 3.9 V @ ≤+85 °C |
| Tolerance Minus | -0.1 |
| Terminal Type | SMD |
| Minimum Operating Temperature | -55°C |
| Leakage Current | 1.5 μA |
| Tolerance Plus | 0.1 |
| Dissipation Factor | 0.1 |
| Maximum Operating Temperature | +125°C |
| Dielectric Material Family | Tantalum |
