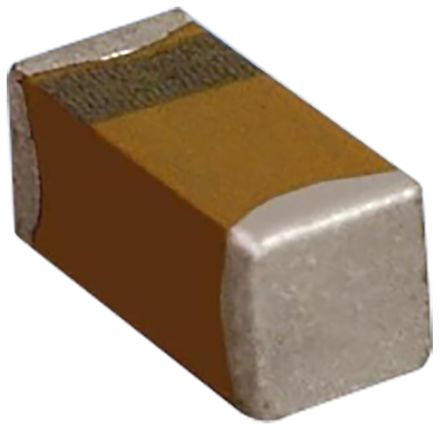

AVX Electrolytic Capacitor 4.7μF 6.3V dc Electrolytic Solid ±10% Tolerance TAC Series [TACL475K006XTA]; 144-1479
by AVX
0₫
Mã kho: 1441479
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 4.7 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 0603 (1608M) |
| Equivalent Series Resistance | 7.5Ω |
| Lead Pitch | 0.55mm |
| Tolerance | ±10% |
| Length | 1.6mm |
| Depth | 0.85mm |
| Height | 0.85mm |
| Dimensions | 1.6 x 0.85 x 0.85mm |
| Series | TAC |
| Electrolyte Type | Solid |
| Dissipation Factor | 0.08 |
| Tolerance Minus | -0.1 |
| Polarised | Polar |
| Leakage Current | 0.5 μA |
| Terminal Type | SMT |
| Dielectric Material Family | Tantalum |
| Surge Voltage | 8 V @ ≤+85°C |
| Tolerance Plus | 0.1 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
