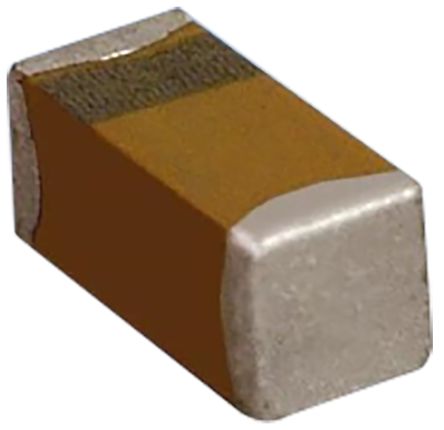

AVX Electrolytic Capacitor 10μF 10V dc Electrolytic Solid ±20% Tolerance TAC Series [TACL106M010XTA]; 144-1475
by AVX
0₫
Mã kho: 1441475
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 10 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 0603 (1608M) |
| Equivalent Series Resistance | 7.5Ω |
| Lead Pitch | 0.55mm |
| Tolerance | ±20% |
| Length | 1.6mm |
| Depth | 0.85mm |
| Height | 0.85mm |
| Dimensions | 1.6 x 0.85 x 0.85mm |
| Series | TAC |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | 0.2 |
| Polarised | Polar |
| Terminal Type | SMT |
| Leakage Current | 1 μA |
| Dissipation Factor | 0.2 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Surge Voltage | 13 V @ ≤+85°C |
| Tolerance Minus | -0.2 |
