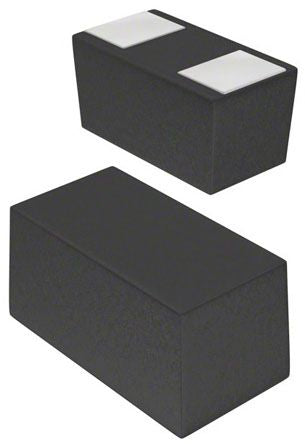

AVX Tantalum Capacitor 10μF 10V dc Electrolytic Solid F98 Series [F981A106MMA]; 136-2620
by AVX
0₫
Mã kho: 1362620
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 10 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 0603 (1608M) |
| Equivalent Series Resistance | 7.5Ω |
| Length | 1.6mm |
| Height | 0.8mm |
| Dimensions | 1.6 x 0.85 x 0.8mm |
| Series | F98 |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Leakage Current | 1 μA |
| Polarised | Polar |
| Terminal Type | SMD |
| Dissipation Factor | 0.2 |
| Dielectric Material Family | Tantalum |
