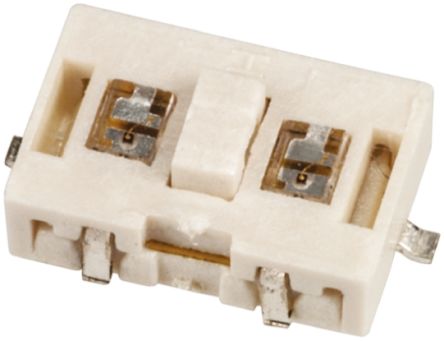

Clear Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 0.5mm Surface Mount [444RD21025816]; 785-6490
0₫
Mã kho: 7856490
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | Solder |
Switch Operation | Momentary |
Actuator Length | 0.5mm |
Actuator Colour | Clear |
Actuator Type | Tactile |
Length | 6.8mm |
Width | 4.5mm |
Dimensions | 4.5 x 6.8mm |
Illuminated | Yes |
Mounting Type | Surface Mount |
Contact Current Rating | 50 mA @ 12 V dc |
Operating Force | 160 g |
Contact Material | Stainless Steel |
Mechanical Life | 50000Cycles |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Voltage Rating | 12V dc |
Maximum Operating Temperature | +85°C |
