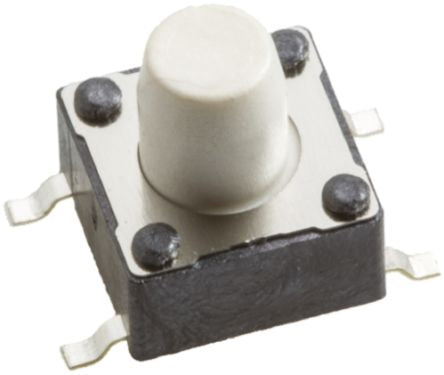

White Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 3.6mm Surface Mount [430152070826]; 785-6226
0₫
Mã kho: 7856226
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder |
| Switch Operation | Momentary |
| Actuator Length | 3.6mm |
| Actuator Colour | White |
| Actuator Type | Tactile |
| Length | 6.2mm |
| Width | 6.2mm |
| Dimensions | 6.2 x 6.2mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA @ 12 V dc |
| Operating Force | 260 g |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 200000Cycles |
| Contact Material | Stainless Steel |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Voltage Rating | 12V dc |
| Height | 7mm |
