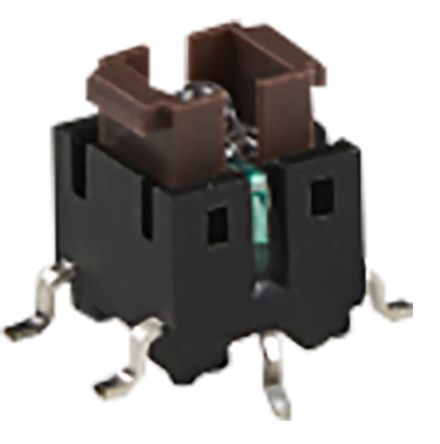

White Rectangular Tactile Switch, Single Pole Single Throw (SPST) 50 mA 2.2mm Surface Mount [FSMIJM63BW04]; 161-5345
0₫
Mã kho: 1615345
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder |
| Switch Operation | Momentary |
| Actuator Length | 2.2mm |
| Actuator Colour | White |
| Actuator Type | Rectangular |
| Length | 6.1mm |
| Width | 6.1mm |
| Dimensions | 6.1 x 6.1mm |
| Illuminated | Yes |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| Operating Force | 260 gf |
| Voltage Rating | 12V dc |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +70°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Brass |
