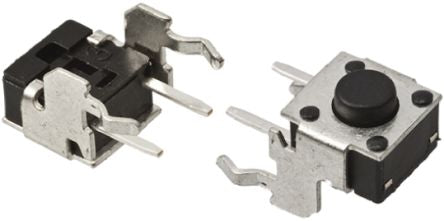

Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 24 V dc 1.24mm [1825027-5]; 161-4645
0₫
Mã kho: 1614645
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 1.24mm |
| Actuator Colour | Black |
| Actuator Type | Button |
| Contact Current Rating | 50 mA @ 24 V dc |
| Operating Force | 1.6 N |
| Contact Material | Silver Plated Copper Alloy |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
