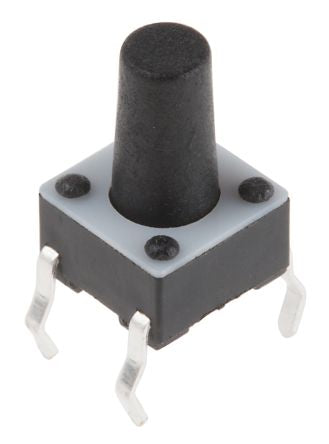

Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 24 V dc 5.9mm [1-1825910-4]; 479-1435
0₫
Mã kho: 4791435
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 5.9mm |
| Actuator Colour | Black |
| Actuator Type | Button |
| Dimensions | 6 x 6 x 9.5mm |
| Contact Current Rating | 50 mA @ 24 V dc |
| Operating Force | 1.569 N |
| Minimum Operating Temperature | -35°C |
| Mechanical Life | 100000Operations |
| Maximum Operating Temperature | +85°C |
| Height | 9.5mm |
| Operating Temperature Range | -35 → +85°C |
| Contact Material | Silver Over Nickel Plated Copper Alloy (Stationary); Silver Plated Copper Alloy (Movable) |
