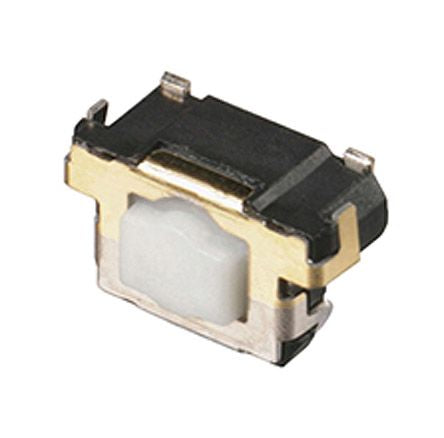

Natural Button Tactile Switch, Single Pole Single Throw (SPST) 20 mA @ 15 V dc 2.6mm Edge Mount [EVQP42B3M]; 125-0217
by Panasonic
0₫
Mã kho: 1250217
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder |
| Switch Operation | Momentary |
| Actuator Length | 2.6mm |
| Actuator Colour | Natural |
| Actuator Type | Push Plate |
| Length | 6.2mm |
| Width | 3mm |
| Dimensions | 6.2 x 2.55 x 2.10mm |
| Mounting Type | Edge Mount |
| Contact Current Rating | 20 mA @ 15 V dc |
| Operating Force | 1.6 N |
| Minimum Operating Temperature | -40°C |
| Height | 2.1mm |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Mechanical Life | 1000000Operations |
| Voltage Rating | 2 → 15V dc |
