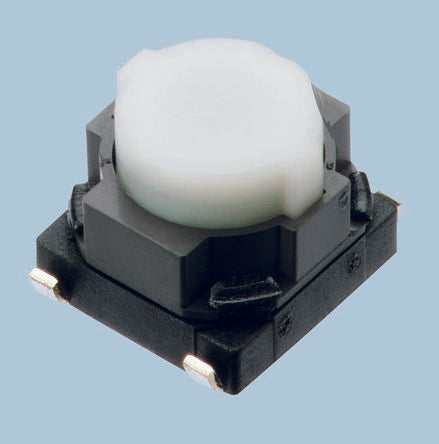

Natural Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V ac 5mm [EVQP1F05M]; 392-1944
by Panasonic
0₫
Mã kho: 3921944
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | J Bend |
| Switch Operation | Momentary |
| Actuator Length | 5mm |
| Actuator Colour | Natural |
| Actuator Type | Tactile |
| Dimensions | 6.1 x 6 x 5mm |
| Contact Current Rating | 50 mA @ 12 V ac |
| Height | 5mm |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
