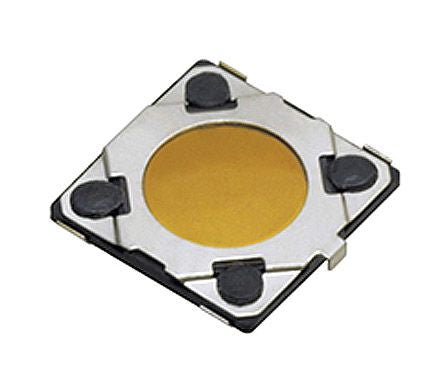

IP67 Black Button Tactile Switch, Single Pole Single Throw (SPST) 20 mA @ 15 V dc 4.3mm Surface Mount [EVQ7P6B40]; 125-0182
by Panasonic
0₫
Mã kho: 1250182
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | J Bend |
| Switch Operation | Momentary |
| Actuator Length | 4.3mm |
| Actuator Colour | Black |
| Actuator Type | Push Plate |
| Length | 4.1mm |
| Width | 4.1mm |
| Dimensions | 4.1 x 4.1mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 20 mA @ 15 V dc |
| IP Rating | IP67 |
| Operating Force | 1 N |
| Mechanical Life | 1000000Operations |
| Operating Temperature Range | -20 → +70°C |
| Minimum Operating Temperature | -20°C |
| Voltage Rating | 2 → 15V dc |
| Maximum Operating Temperature | +70°C |
