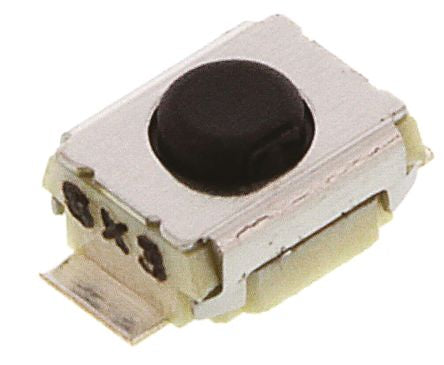

IP40 Tactile Switch, SPST-NO 50 mA @ 24 V dc [B3U1000P]; 419-867
by Omron
0₫
Mã kho: 419867
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SPST-NO |
Terminal Type | Surface Mount |
Switch Operation | Momentary |
Actuator Type | Tactile |
Dimensions | 3 x 2.5 x 1.6mm |
Contact Current Rating | 50 mA @ 24 V dc |
IP Rating | IP40 |
Operating Force | 1.5 N |
Contact Material | Silver Plated |
Minimum Operating Temperature | -25°C |
Mechanical Life | 200000Operations |
Maximum Operating Temperature | +70°C |
Height | 1.6mm |
Operating Temperature Range | -25 → +70°C |
