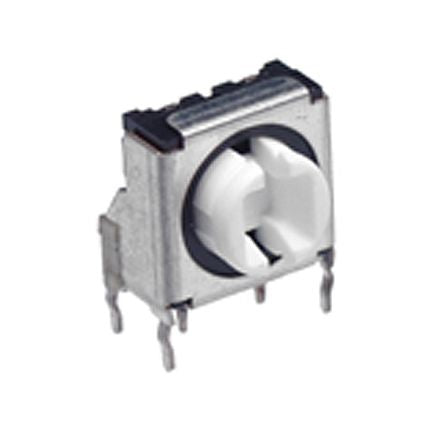

Short Tactile Switch, Single Pole Single Throw (SPST) 50 mA 3mm PCB [JB15KH]; 125-3468
by NKK Switches
0₫
Mã kho: 1253468
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | PC Pin |
Switch Operation | Off-On (Momentary) |
Actuator Length | 3mm |
Actuator Type | Short |
Length | 10.8mm |
Width | 10.8mm |
Dimensions | 10.8 x 10.8mm |
Mounting Type | PCB |
Contact Current Rating | 50 mA |
Operating Force | 1.76 N |
Contact Material | Brass (Stationary), Stainless Steel (Movable) |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -25°C |
Operating Temperature Range | -25 → +70°C |
Voltage Rating | 24V dc |
