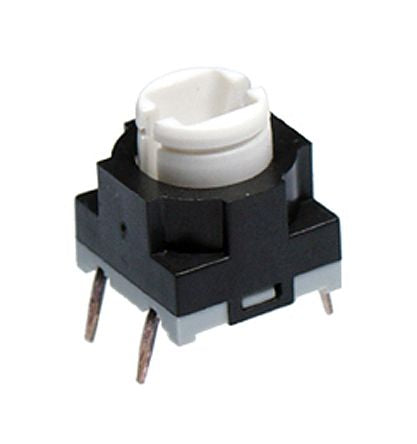

Extended Tactile Switch, Single Pole Single Throw (SPST) 125 mA 3.3mm PCB [JB15HAP]; 125-3460
by NKK Switches
0₫
Mã kho: 1253460
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | PC Pin |
Switch Operation | Off-On (Momentary) |
Actuator Length | 3.3mm |
Actuator Type | Extended |
Length | 12.3mm |
Width | 12.3mm |
Dimensions | 12.3 x 12.3mm |
Mounting Type | PCB |
Contact Current Rating | 125 mA |
Operating Force | 2.65 N |
Minimum Operating Temperature | -25°C |
Contact Material | Brass (Stationary), Stainless Steel (Movable) |
Operating Temperature Range | -25 → +70°C |
Voltage Rating | 24V dc |
Maximum Operating Temperature | +70°C |
